INTRODUCTION

1

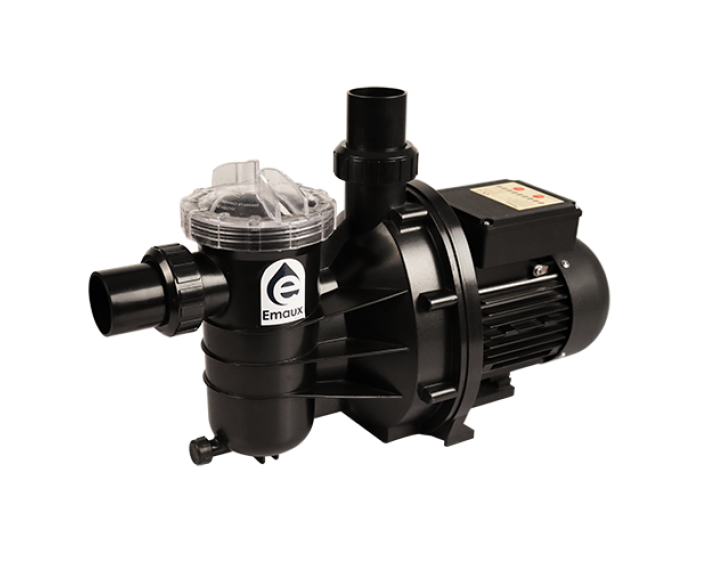

THE BEST OPTION FOR SMALLER PLUMBING
For the small size residential pools or above-ground pools
The SS pump is quiet running and energy efficient.1.5-inch suction and discharge port with a transparent lid. It operates at a low decibel and energy consumption which requires minimal maintenance.

Additional features for timer option:

• No need to install an external timer for the pump.
• Set up the ideal switch-on time and the run-time ranging from 2 hours a day to 24 hours.
• Battery backup memory for up to 72 hours.

1 1 1 1 1

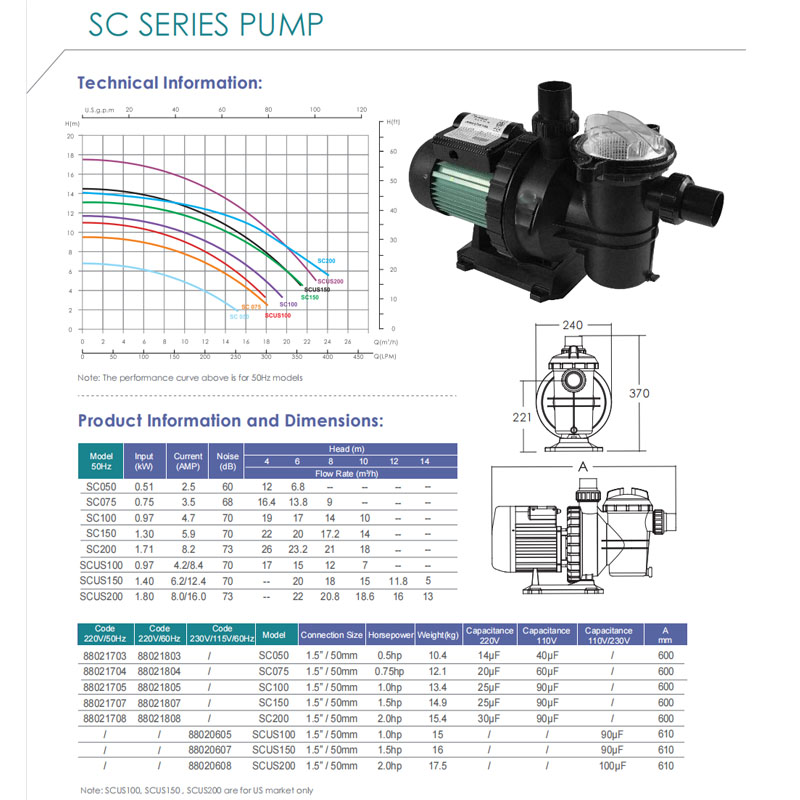

Technical Information

 1.5 inch suction and discharge port with transparent lid

 Asynchronous, Two poles motor

 Class insulation: 130(B)

 IPX5 Waterproof standard

 Built-in thermal protection

 Overload protection

 External heat sink

 Available in 50Hz or 60Hz with 220V/110V

 Special design union compatible with both Imperial and Metric measurement standard

 S.S. 316 Shaft

 S.S. 316 Mechanical seal
