Stainless steel solid-liquid separation micro-rotor filter for drum filter pond koi fish pond culture system

Stainless Steel Solid Liquid Separation Rotary Drum Filter For Fish Fariming
Drum filter (also known as drum micro filtration screen) is a solid-liquid separation equipment, widely used in the first stage of
raw water or sewage solid-liquid separation process in aquaculture, waterworks, urban domestic sewage, papermaking, textile,
printing and dyeing, chemical industry, etc.

It is mainly composed of four parts: tank component, roller component, backwash component and liquid level automatic control
component. The roller component consists of a roller frame (which can be made of metal or plastic) and a screen (stainless steel
screen or nylon screen). The main function is to filter tiny suspended substances in the water (fish excrement, bait, pulp fiber,
sand), Plankton such as algae and daphnia.

Applications

Factory indoor aquaculture farms, especially high-density aquaculture farms.
Aquaculture nursery ground and ornamental fish culture base;
Seafood temporary maintenance and transportation;
Water treatment of aquarium project, seafood fish pond project, aquarium project and aquarium project.

Technical parameters

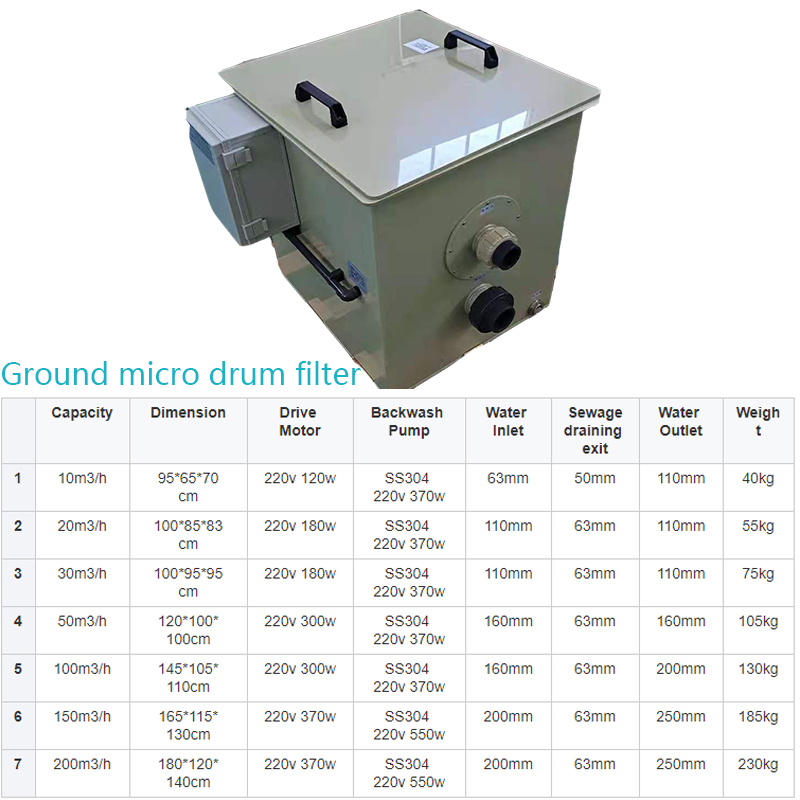

Box Type Drum Filter
The drum filter is mainly composed of four parts: tank component, roller component, backwash component and liquid level automatic
control component. It is made of non-toxic seawater corrosion-resistant high-quality engineering plastic materials. A stainless
steel filter screen is fixed on the rotatable drum, and the tiny suspended substances in the water are
separated and filtered through the screen and finally achieve solid-liquid separation. During the filtering process, small
suspended particles in the water will cause the screen to be blocked. When the screen is blocked, the liquid level automatic
control component works, and the backwash water pump and roller reducer automatically start working to make the screen timely
cleaning to keep the equipment in good working condition.

send inquiry
E-mail: aibogj@163.com
WhatsApp: +86-13712005871

model	size	content	weight(KG)	Suitable for water bodies
A10T	16080110cm	(Including: liquid level control drum, 50w ultraviolet germicidal lamp, brush, rattan cotton filter, bacteria house)	60	20T-30T
A20T	22080110cm	(Including: liquid level control drum, [50w ultraviolet germicidal lamp, brush, rattan cotton filter, bacteria house)	85	30T-50T
A50T	260100120cm	(Including: liquid level control drum, 100w ultraviolet germicidal lamp, brush, rattan cotton filter, fine green house)	110	50T-80T
A80T	300100130cm	(Including: liquid level control drum, 200w ultraviolet germicidal lamp, brush, rattan cotton filter, bacteria house)	210	80T
